6. Multiple toggles

Controlling an aura through the UI

The code works but isn't perfect. Clicking the button toggles the trigger and aura correctly. But if you activate a trigger with a hotkey, the UI doesn't refresh automatically—it needs a signal. We'll use the same simple solution: refresh the interface once per second. Not optimal, but fine for our tiny UI.

Prepare the overlay and target auras

Create a C# Overlay v3 aura and TargetAura 1, TargetAura 2, TargetAura 3 in the same folder. Add HotkeyIsActive in toggle mode to each target and keep them loaded. The shown ./TargetAura paths resolve relative to the overlay context; adjust them to your actual tree. If several triggers match, the first is selected.

Replace UserOverlay.cs and UserOverlay.razor with the corresponding complete blocks below. They are parts of one public partial class in the same namespace. [Inject] supplies AuraTree; Script.csx globals are not component globals.

UserOverlay.cs

csharp
using System;
using System.Reactive.Linq;
using Microsoft.AspNetCore.Components;
using PoeShared.Blazor;
using EyeAuras.Scripting.Api;
using EyeAuras.DefaultAuras.Triggers.HotkeyIsActive;

public partial class UserOverlay : BlazorReactiveComponent {

    [Inject]
    public IAuraTreeScriptingApi AuraTree { get; init; }

    public bool Trigger1IsActive
    {
        get => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 1").TriggerValue ?? false;
        set => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 1").TriggerValue = value;
    }

    public bool Trigger2IsActive
    {
        get => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 2").TriggerValue ?? false;
        set => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 2").TriggerValue = value;
    }

    public bool Trigger3IsActive
    {
        get => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 3").TriggerValue ?? false;
        set => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 3").TriggerValue = value;
    }

    protected override void OnInitialized()
    {
        ChangeTrackers.Add(Observable.Timer(DateTimeOffset.Now, TimeSpan.FromSeconds(1)));
        base.OnInitialized();
    }
}

UserOverlay.razor

html
@using PoeShared.Blazor
@using PoeShared.Blazor.Controls
@inherits BlazorReactiveComponent

<h3 class="text-center shadow-1">Toggle Multiple Triggers</h3>

<div class="text-center mt-4 mx-2 d-flex gap-1 alert alert-info">
    <ToggleButton @bind-IsChecked="@Trigger1IsActive">
        Trigger <b>1</b>
    </ToggleButton>
    <ToggleButton @bind-IsChecked="@Trigger2IsActive">
        Trigger <b>2</b>
    </ToggleButton>
    <ToggleButton @bind-IsChecked="@Trigger3IsActive">
        Trigger <b>3</b>
    </ToggleButton>
</div>

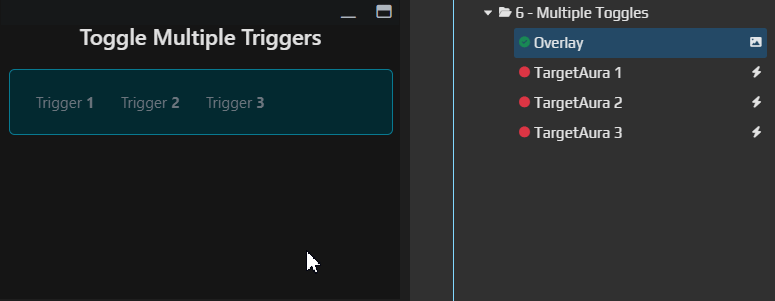

Demo


Breakdown

UserOverlay.cs

csharp
    public bool Trigger1IsActive
    {
        get => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 1").TriggerValue ?? false;
        set => AuraTree.GetTriggerByPath<IHotkeyIsActiveTrigger>("./TargetAura 1").TriggerValue = value;
    }

For convenience we declare properties for each aura. The logic is the same as before, but instead of splitting trigger lookup and value access, we do both at once. GetTriggerByPath guarantees the trigger is found (or throws), so this is safe.

UserOverlay.razor

html
<div class="text-center mt-4 mx-2 d-flex gap-1 alert alert-info">
    <ToggleButton @bind-IsChecked="@Trigger1IsActive">
        Trigger <b>1</b>
    </ToggleButton>
    ...
</div>

Key classes in the parent <div>:

  • d-flex – lay out elements in a row
  • gap-1 – small gap between them (gap-2, gap-3, etc. are also available). These classes come from Bootstrap
  • alert alert-info – wrap buttons in a colored box for visibility

The buttons themselves changed only by variable name and small style tweaks. See here for more button styles. We'll cover customizing styles next.

The button writes TriggerValue, and the hotkey changes the same trigger. The ChangeTrackers timer rereads it about once per second, so external changes appear with a delay. Add the timer before base.OnInitialized(), which seals the tracker list and owns the subscriptions through component Anchors. Hiding a window is not the same as disposing its component.
