IDE Integration (Rider/Visual Studio)

Export and Live Import

Export, Import, and Live Import

One of the core traits of any automation project is that it tends to grow over time.

At first, you just want a script to press one button for you. Then you add a couple of conditions for when that button should be pressed. A day later, there is another button. Before you know it, the script is already 1000+ lines long.

The built-in EyeAuras script editor is mainly designed for smaller projects: a simple clicker, a small bot, some helper utility, and of course application scripts used in behavior trees and macros.

At some point, that is no longer enough. You want to organize classes into folders, navigate code with smart search, write unit tests, and use all the other advantages of modern development tools such as JetBrains Rider and Visual Studio.

But those IDEs are built by companies with hundreds or thousands of people behind them, which is not the case for EyeAuras. The conclusion is simple: EyeAuras will never catch up to full-featured IDEs, so the better solution is to integrate with them instead.

That solution is Export/Import/LiveImport.

Export

The idea is simple: your C# script is exported as a full C# project that you can even build inside your IDE. You then work on it with the modern development tools you prefer, and when everything is ready, you import the project back into EyeAuras. This gives you the best of both worlds.

You can still use all built-in EyeAuras SDK features, such as image processing, input simulation, memory access, and custom UI built with Blazor and ImGui, along with everything else.

A prototype of exporting appeared in December 2024, and over the following year it was gradually improved and expanded.

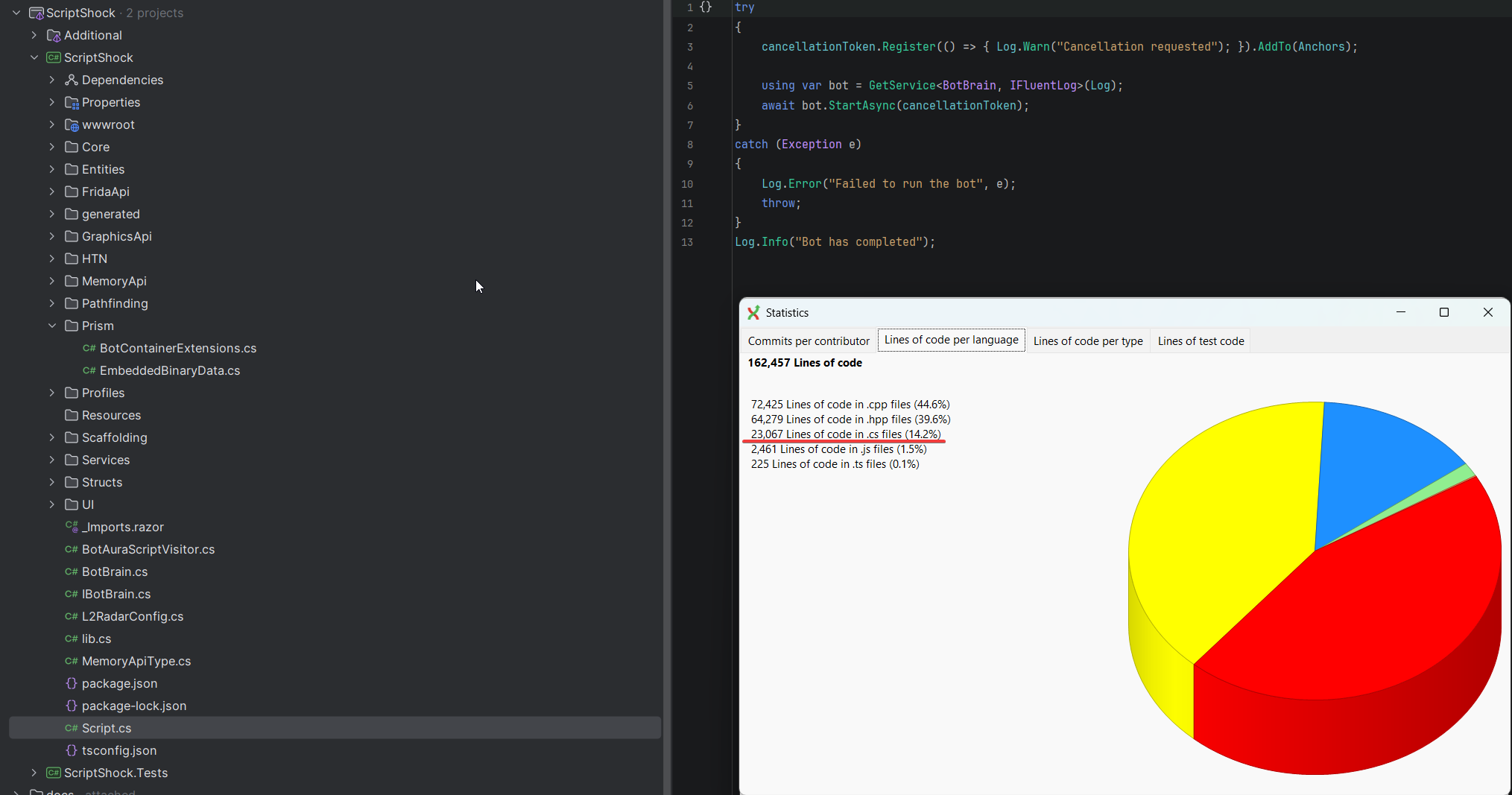

At this point, the largest bot built with this approach is already over 23000 lines long and uses almost everything that has been developed for EyeAuras over the years. So by now, this functionality is stable enough and recommended for real projects.
Bot example

Example

We will use Hello, World. In practice, there is no major difference here—almost all auras behave roughly the same way.

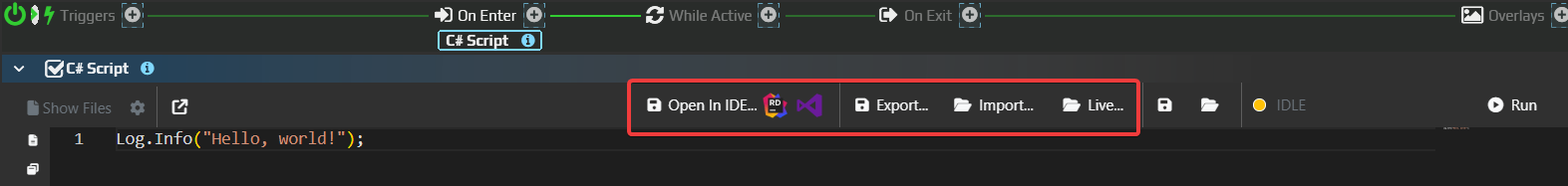

At the top of C# Action, there is a group of buttons responsible for IDE integration.
Controls

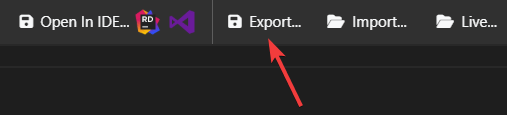

Export

Export

This exports your script and all dependencies as .sln and .csproj files. During export, EyeAuras configures the EyeAuras NuGet server reference, imports, and all other required details.

Important: the target folder is cleared during export, so do not export into a folder that contains important data. By default, EyeAuras suggests one of the standard folders, and it is recommended to leave it as is.

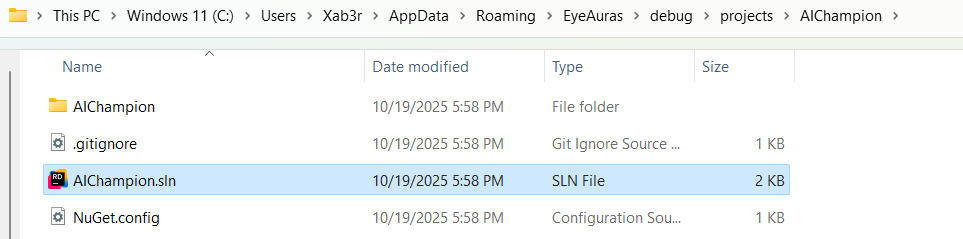

After export, you will get a folder with a pseudo-random name and several files inside it. That is your project, and you can open it in your IDE from there.
Export Result

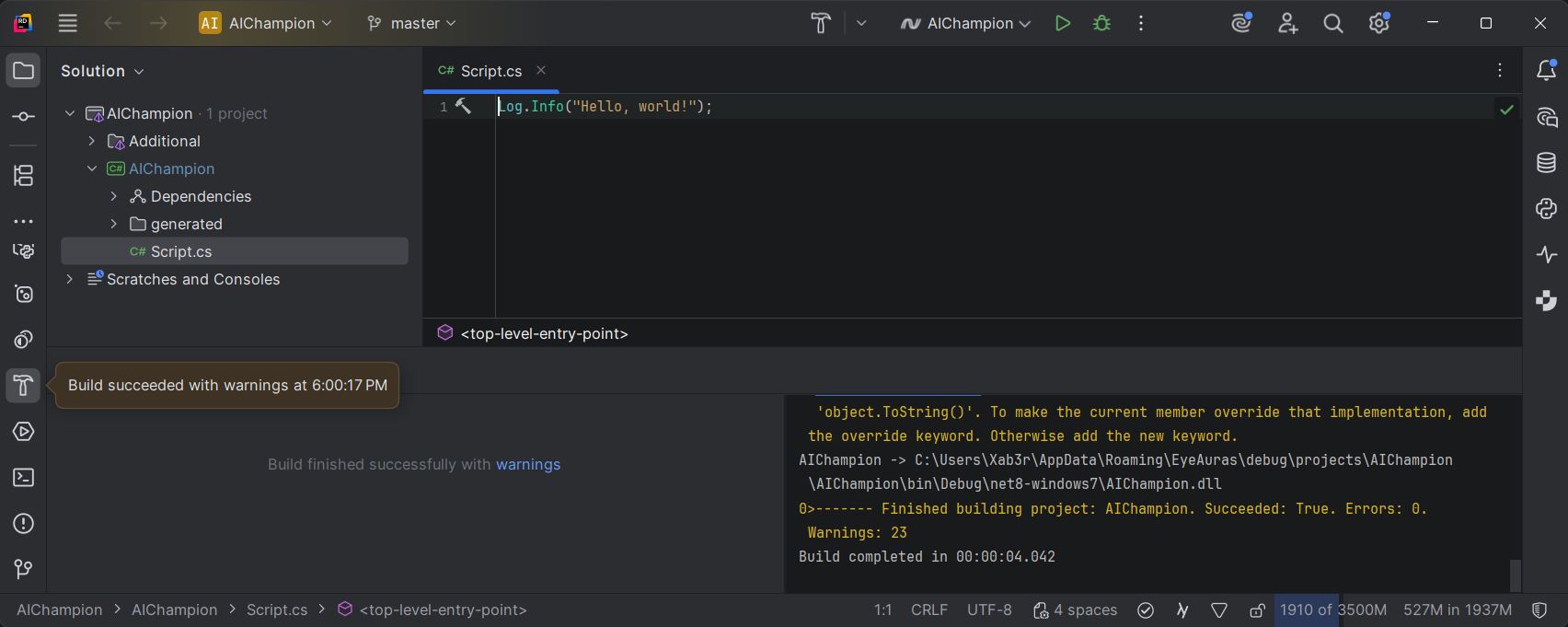

Building the project

The exported project is expected to build successfully. Export does not just prepare text files—it creates a real C# project with all required dependencies. If the script worked in EyeAuras, it should also build in your IDE.

If that is not the case, feel free to click Report a Problem in the EyeAuras window so it can be investigated. Just make sure to check Auras.zip so your script is included in the report.

IDE

Working with code

Almost all standard IDE functionality is available: syntax highlighting, code navigation, file creation, and so on.

Export includes host stubs for compilation. Building successfully does not create a live EyeAuras host inside the IDE; debugger behavior must be checked for the version you use.

What is already available and working:

  • syntax highlighting and autocomplete
  • code navigation, including EyeAuras internal libraries
  • class documentation directly in the editor (hover with the mouse)
  • support for adding NuGet packages
  • support for Blazor files, both with and without code-behind
  • the ability to create folders, classes, and similar project items
  • support for external libraries, preferably through Embedded Resources
  • the ability to unit-test ordinary classes in a separate project. Import matches the script and its dependencies, not every project in an arbitrary solution. Do not reference the test project as a runtime dependency of the script

What does not work yet:

  • export alone does not provide a running EyeAuras host in your IDE; check script behavior in EyeAuras
  • pre-/post-build actions are not executed inside EyeAuras — this means you can still use them, for example, to generate JavaScript from TypeScript for your Blazor UI, but EyeAuras will import the final JS files only

Import

Import

Once you are done working on the code, you can pull the changes back into EyeAuras and run the script.

There are several ways to do this. The simplest one is to click Import and select the .sln file.

EyeAuras will load the solution, extract all required information from it, and update the script. Keep in mind that during synchronization, all local changes made directly in EyeAuras after export will be lost — EyeAuras will load the code from your project.

To check the round trip, change Script.csx to Log.Info("Hello from IDE");, save, import, and run the C# Action in EyeAuras. The Event Log should show the new message. An IDE build requires the generated project’s .NET SDK and available dependency versions. Run

Technically, this alone is already enough to build real solutions: you can export, edit in an IDE, and import back.

However, one of the most valuable things in development is turnaround time: how long it takes to make a change and then see it in the finished product. Shorter turnaround means faster development, faster testing, and more time spent improving the product instead of fighting the tools.

This is where EyeAuras offers something that can be even faster than a modern IDE workflow: Live Import.

Live Import

Live Import

Enable Live Import for the exported solution and save a changed log message in the IDE. EyeAuras watches project files and updates the script project. Restart the C# Action and check the new message in the Event Log.

This is not universal .NET state preservation. A code change can recreate the context and reset its fields. Automatic restart depends on the surface and host version. If the result did not change, inspect the selected project and import diagnostics, then use Stop/Start. Update latency is not guaranteed.

Live Import + C# Overlay

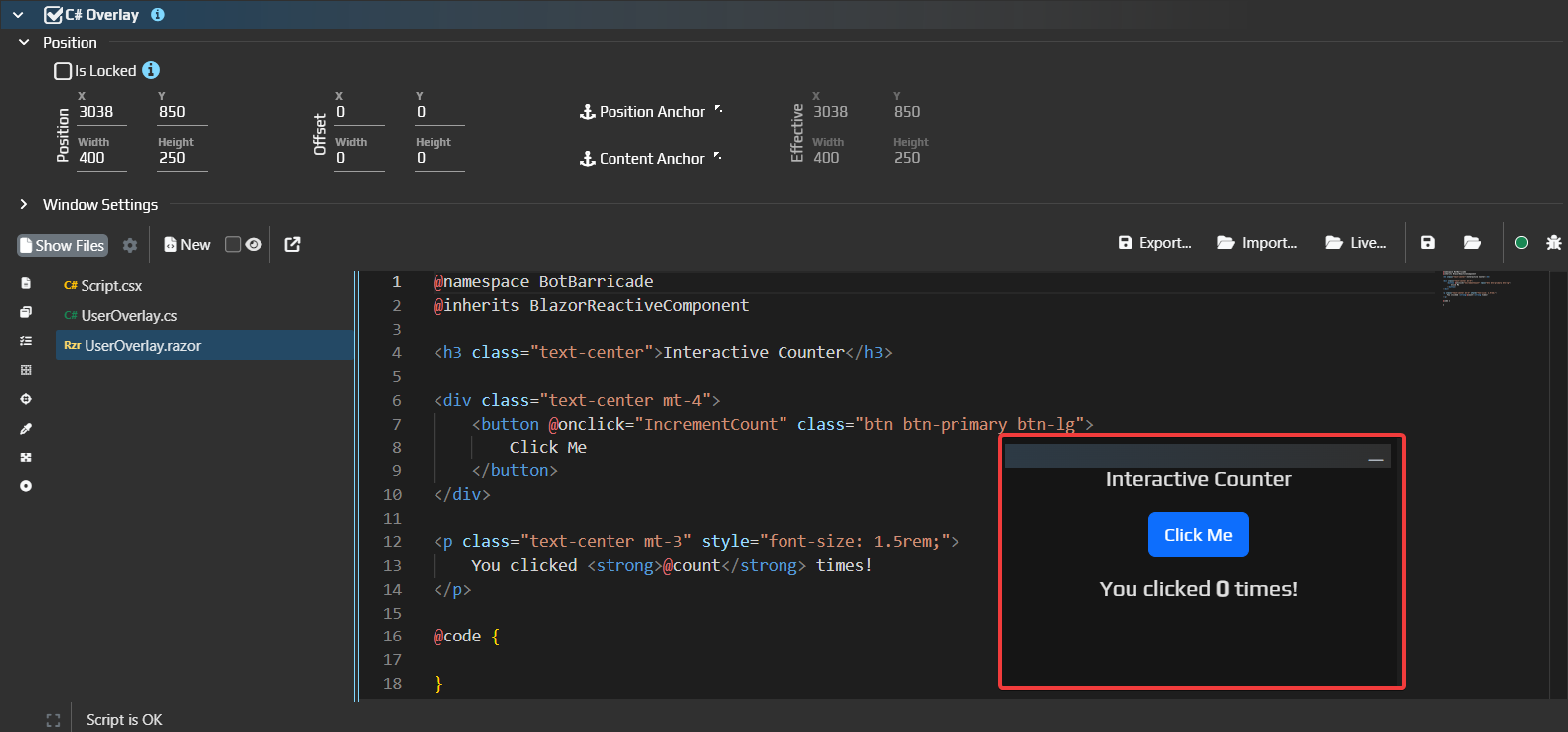

EyeAuras provides several ways to run scripts, and one of them is C# Overlay. This overlay can be used to create custom UI, show notifications, or draw other information on the screen. Under the hood, it is a script that uses Blazor Windows for rendering.
C# Overlay

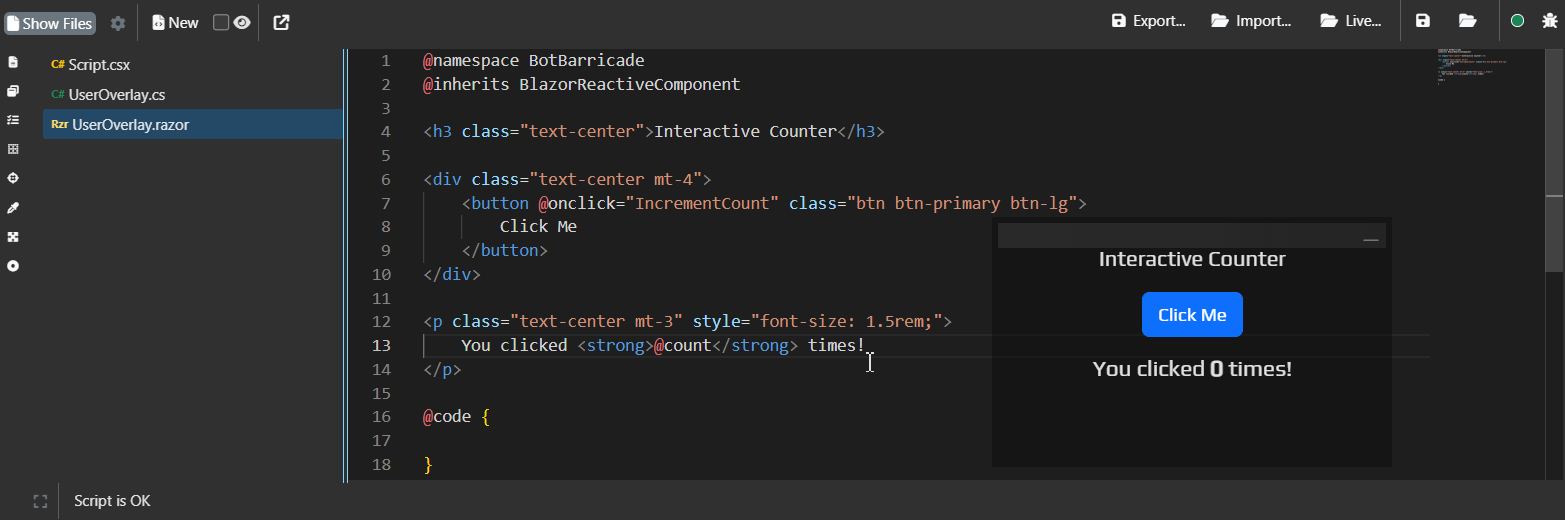

Its main difference from C# Action is that the window you see on screen is "live". A project update can recreate the window content. Check the visible result of your edit; this does not promise preservation of all window state. C# Overlay Live

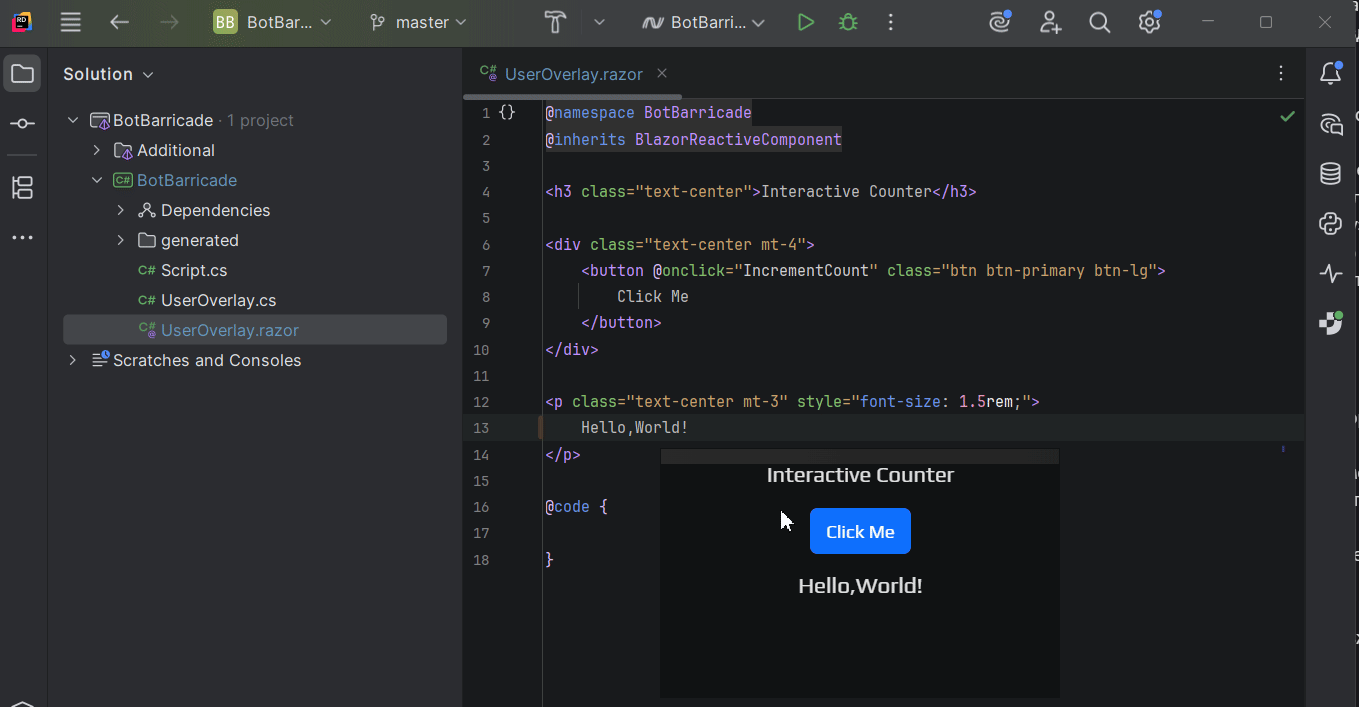

Just like a regular script, overlay code can be exported and then used with Live Import. In that case, saved project changes are imported into EyeAuras. Displaying them depends on successful compilation and the overlay lifecycle.

C# Overlay in Rider

Open in IDE

Open in IDE

This button combines Export + Live Import and reduces the number of clicks to a minimum.

When you press it, EyeAuras first exports the project into the selected folder, then launches the IDE associated with .sln files on your system—it can be Rider, Visual Studio, or anything else—and then immediately starts Live Import.

After opening the IDE, check import status and the result in EyeAuras. Opening and update times are not guaranteed.

Use the exported project with an AI client

Use an IDE that supports your C# solution. Razor, test, debugger and AI features depend on the IDE version and extensions. Give an AI client the project context: Log, Variables, Sleep and cancellationToken belong to the script host; ordinary classes receive these capabilities explicitly. The API maps route to the relevant contracts.

MCP (Model Context Protocol) lets clients call exposed tools and access resources. EyeAuras provides analysis of the selected exported EyePad workspace: compile diagnostics, symbol lookup, documentation and package/reference analysis. Each script_ondisk_* call resolves the selection again. Check its returned resolvedWorkspace; do not assume a previous tool's workspace is still selected.

Edit files through your IDE or its client's workspace tools. Connecting MCP alone does not give access to every file or execute the script.

Start EyeAuras MCP

  1. Open AI Assistant / AI in EyeAuras.
  2. Show settings if necessary and check MCP Port.
  3. Choose Start MCP and wait for a running status or inspect the error.
  4. Copy the endpoint shown by EyeAuras into your client's HTTP MCP configuration.

An endpoint may look like http://127.0.0.1:48080/mcp. The displayed endpoint is authoritative; a configured port need not be free. Pressing Start alone does not prove the client connected. Check its available tools and the workspace returned by a diagnostic request.

Client setup depends on the installed version. See the official Rider AI Assistant MCP guide and VS Code MCP guide. In Visual Studio, use the MCP settings of your selected AI extension. These are configuration routes, not a claim that every external client was tested.

The current source routes import through AuraScriptSynchronizer; monitoring respects .gitignore, .eaignore and generated-file exclusions. Import/Live Import are unavailable with CompileOnce. See project workflow and the MCP workspace implementation.
